TOC-2 transformer clamp – compact, M12 / M20 / M30
Clamps certified by SEP-BBJ
TOC-2 clamps hold a certificate of conformity issued by SEP – Quality Testing Office (BBJ), a certification body accredited by PCA (No. AC 012). TOC-1 M12 clamps from the same family, together with the OZNN cover, hold Certificate of Conformity No. Z/12/004/26.
Two clamps, the same connectivity

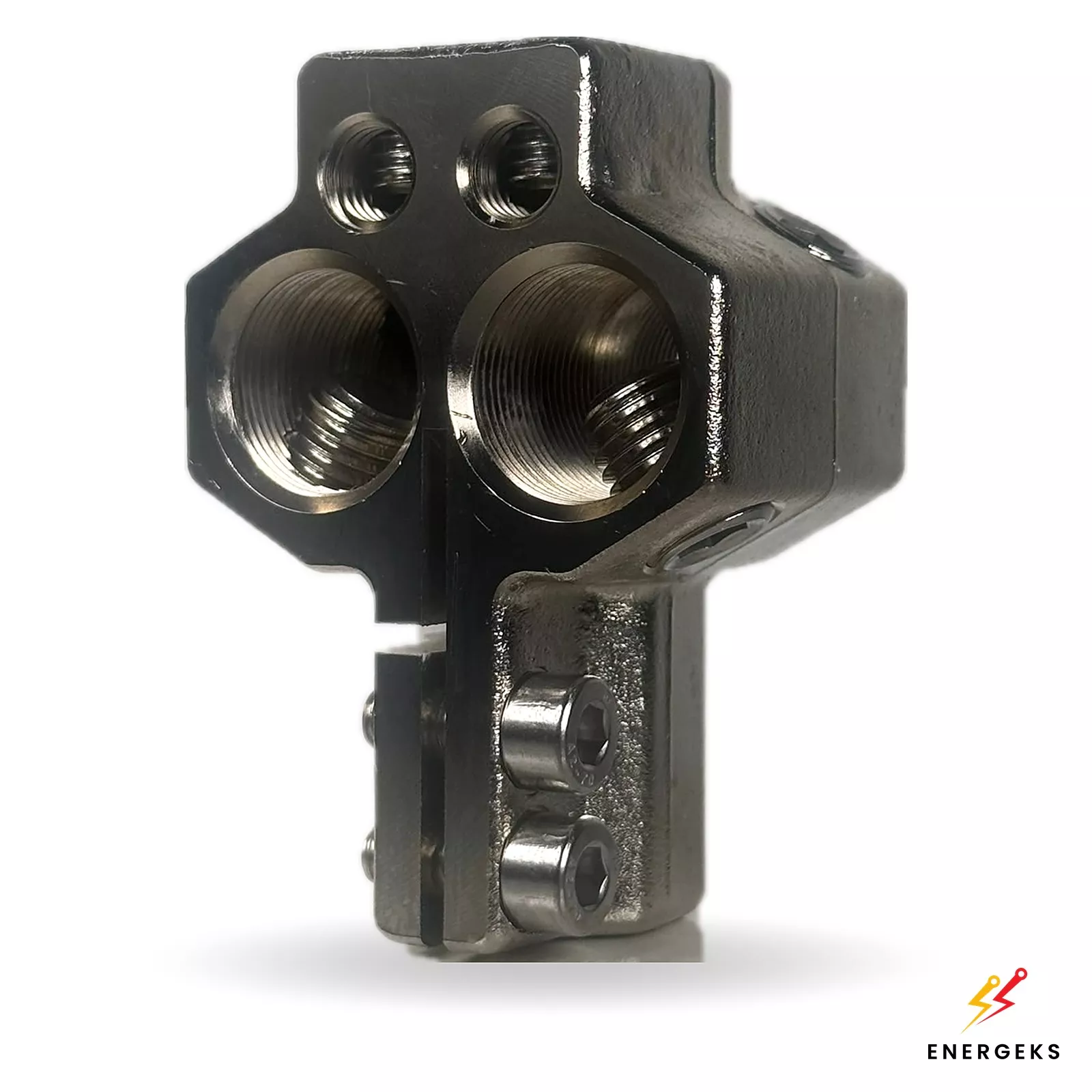

TOC-1
- Body with an offset foot – two locking screws on the foot, below the head
- Sockets sit higher above the cover – easy access with thick conductors
- Our standard for MarkoEco2

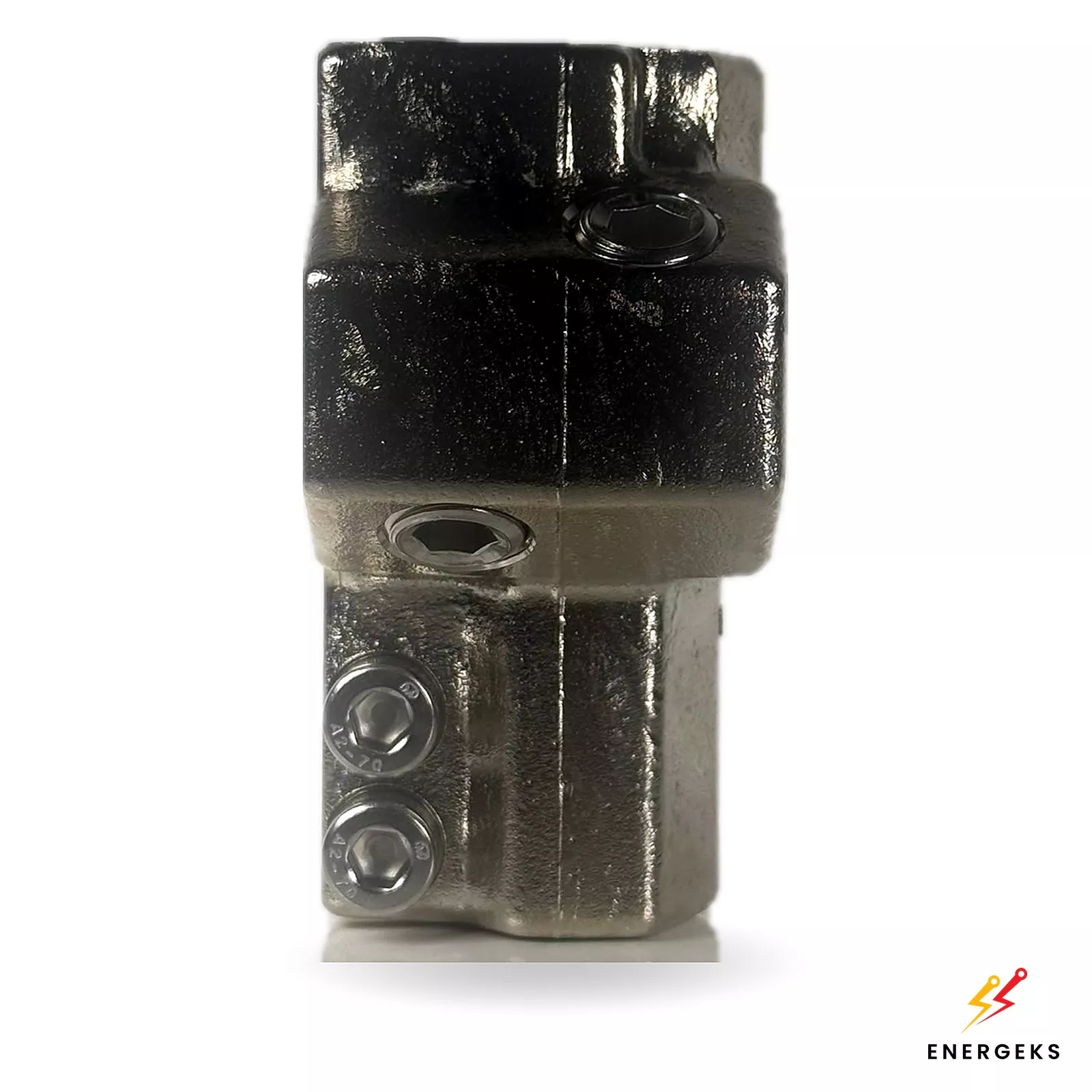

TOC-2
- Compact body – sockets in the head, slotted shank, locking screws on the side
- Smaller footprint on the cover – for closely spaced LV bushings or under a cover
- Same M12/M20/M30 thread and the same conductor sizes
Both clamps are tin-plated brass forgings with stainless steel fastening screws and fit the OZNN cover. Not sure which one? Tell us the transformer type and we will advise.
Which TOC-2 for your transformer
| Catalogue no. | Version | Stud thread | I max | Transformer rating |
|---|---|---|---|---|
| DP 6100 | TOC-2/U | M12 | 250 A | ≤ 160 kVA |
| DP 6200 | TOC-2/U | M20 | 630 A | 250 / 400 kVA |
| DP 6300 | TOC-2/U | M30 | 1000 A | 630 kVA |
| DP 6100N | TOC-2/N with earthing | M12 | 250 A | ≤ 160 kVA |
| DP 6200N | TOC-2/N with earthing | M20 | 630 A | 250 / 400 kVA |
| DP 6300N | TOC-2/N with earthing | M30 | 1000 A | 630 kVA |
Set per transformer: 4 pcs – 3 × /U for the phases, 1 × /N for the neutral (two studs for the earthing or N conductor). Weight approx. 1.0 kg each. Catalogue sheets 7-65/15 (TOC-2/U) and 8-65/15 (TOC-2/N). How to choose a clamp – guide →
TOC-2/U and TOC-2/N
Completing the set

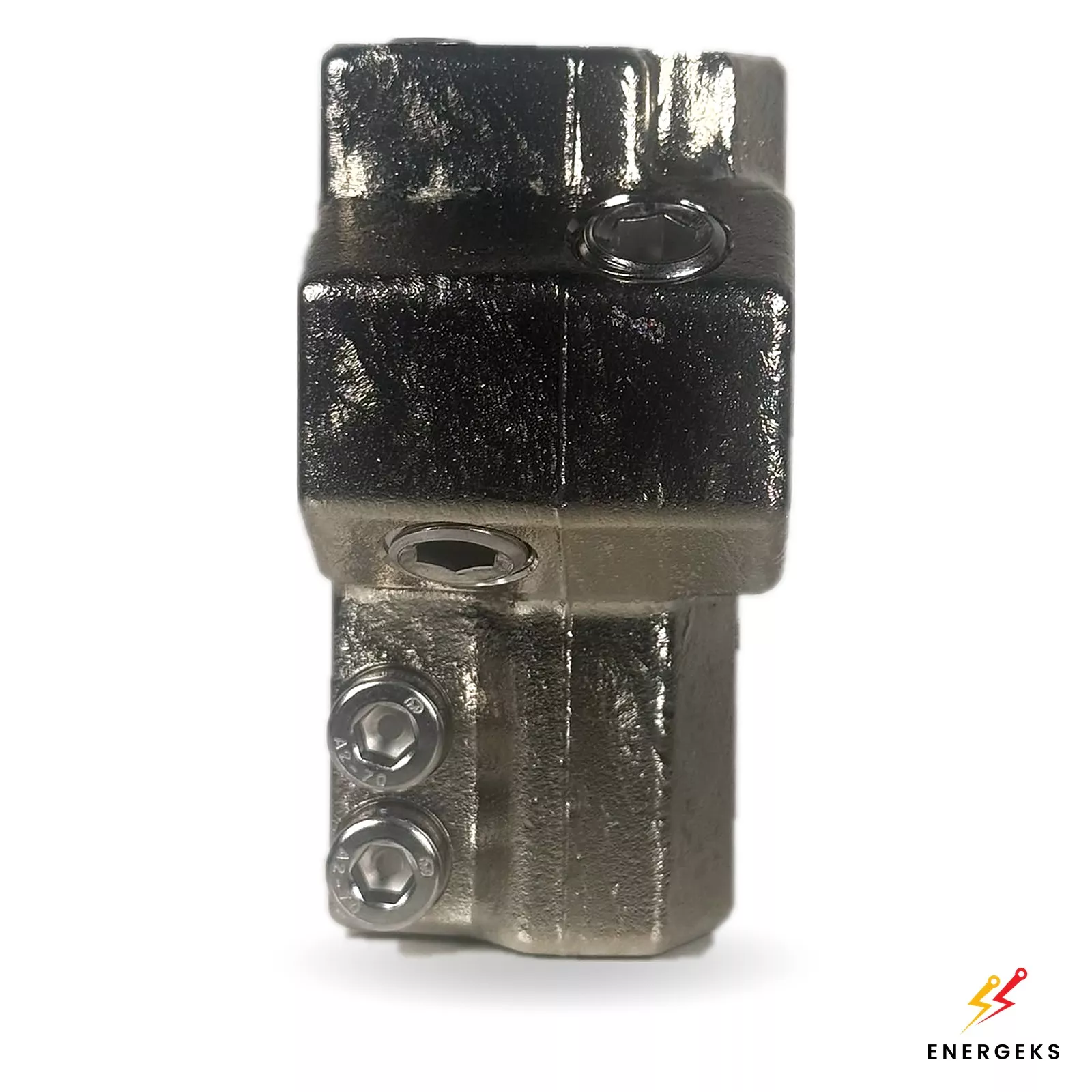

TOC-2/U
Phase version: 2 main + 2 auxiliary sockets in a compact head.

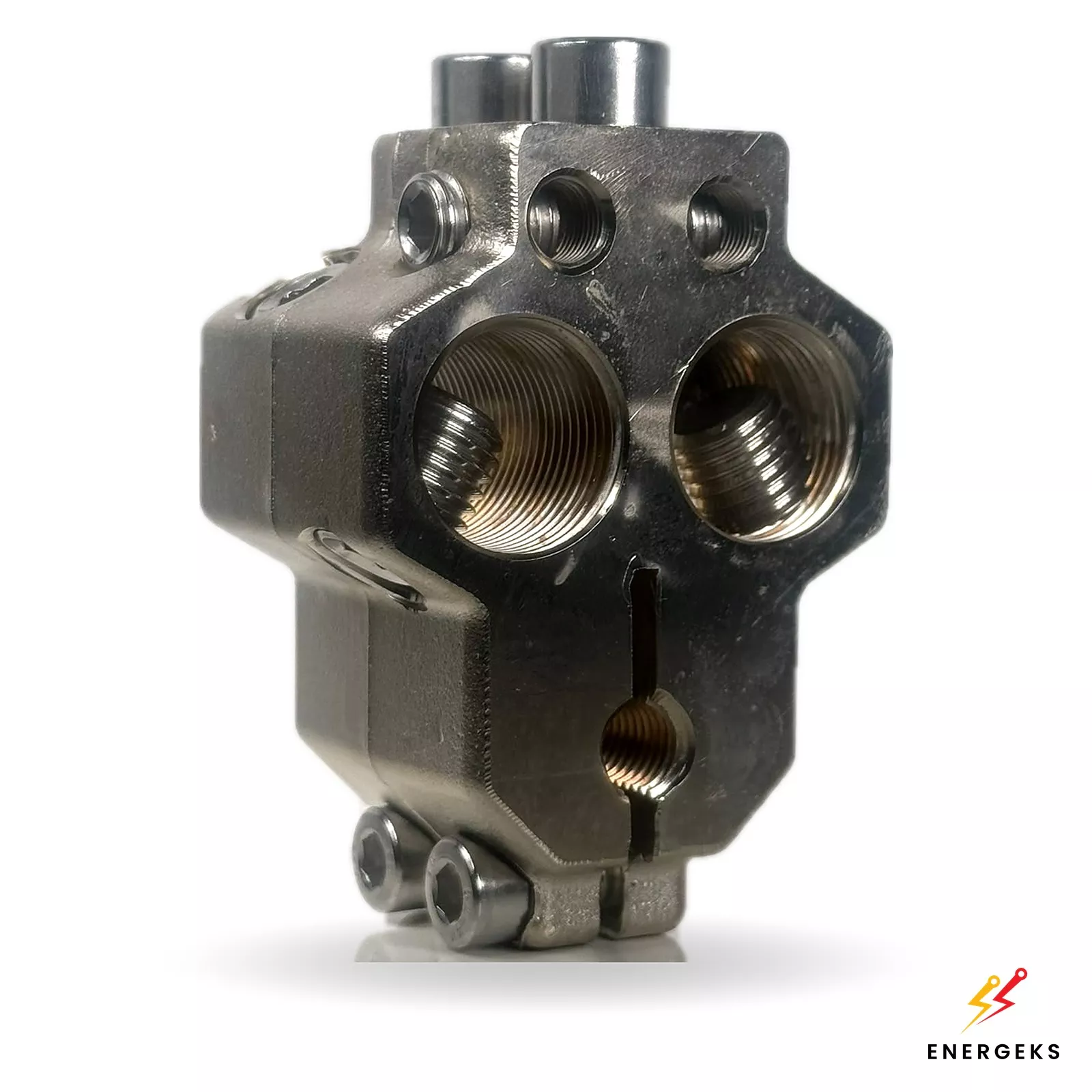

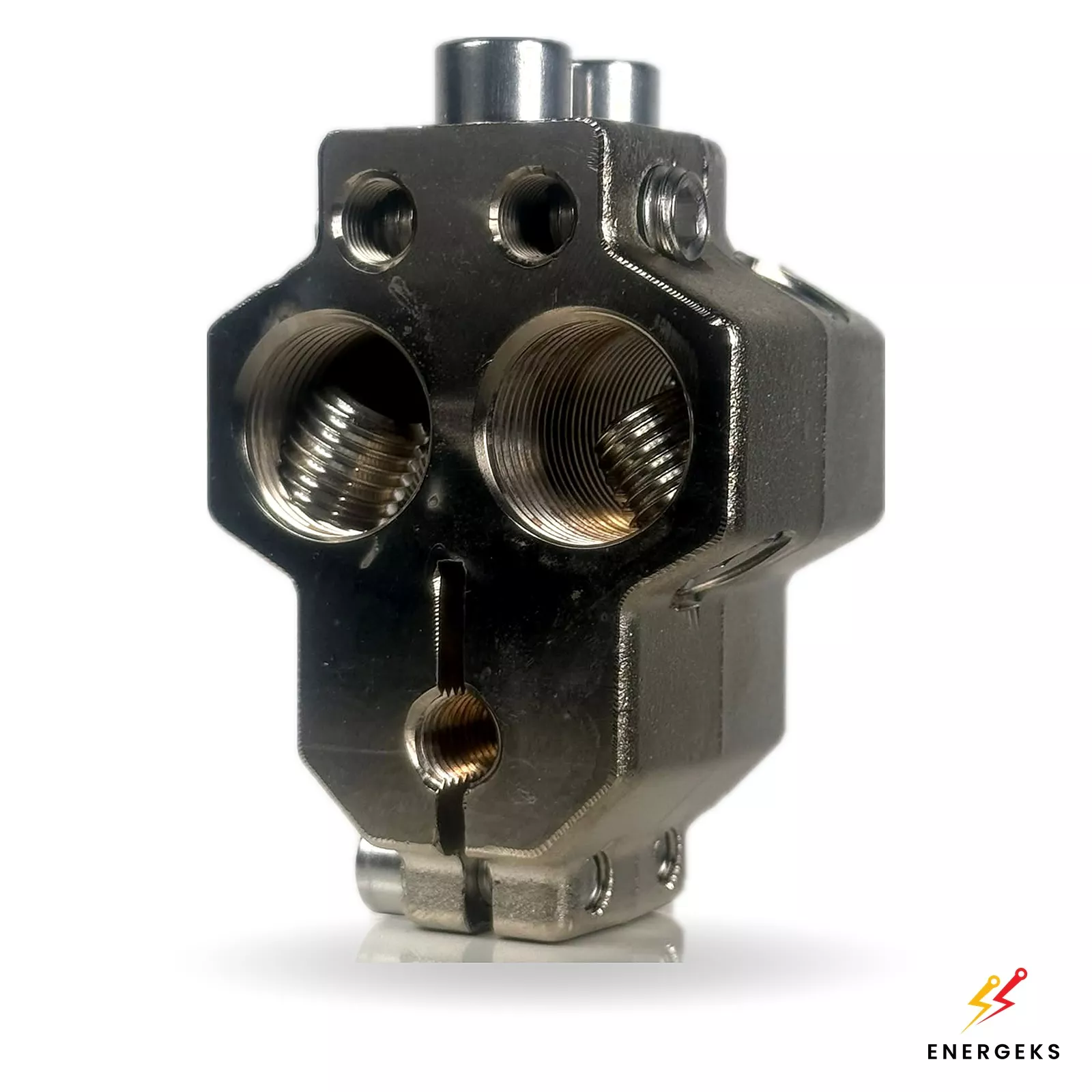

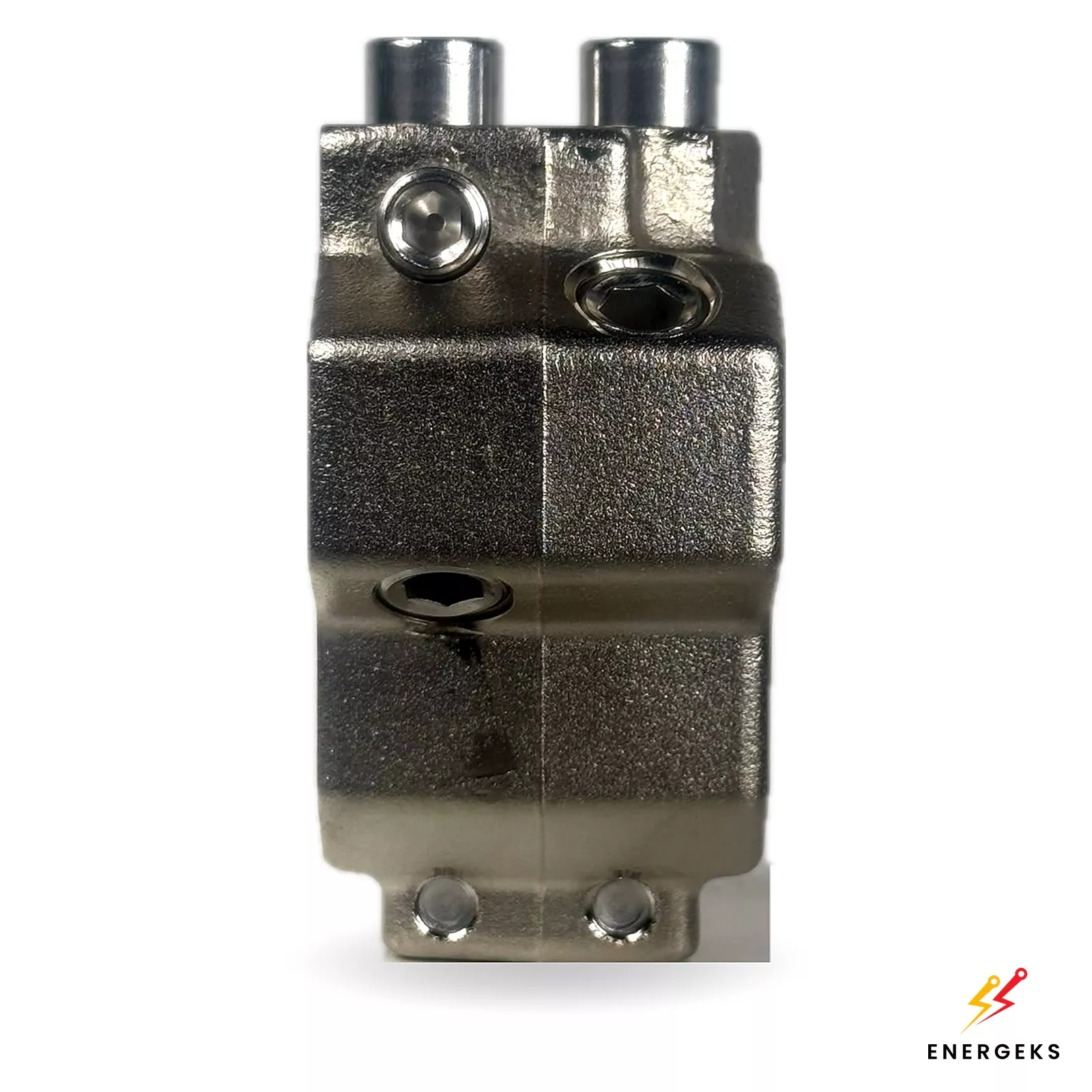

TOC-2/N
Version with two studs for the neutral or earthing conductor.

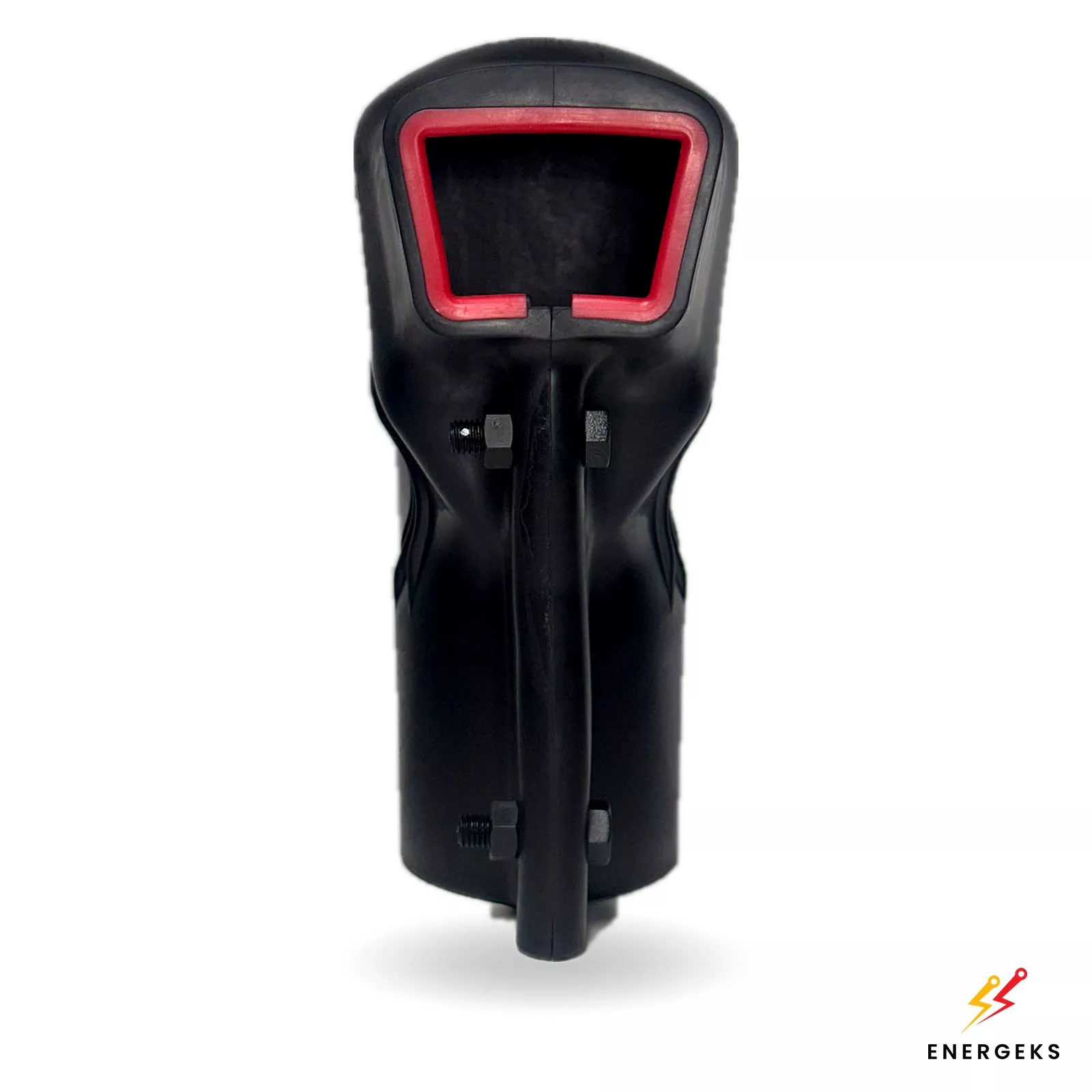

OZNN cover
Insulating cover for the clamp – protection against touch, birds and rodents.
A clamp from the transformer maker
Transformer + accessories
We match the clamps to our MarkoEco2 transformers; they fit any LV bushing with an M12–M30 stud.
Forged, not cast
Forged tin-plated brass, A2 screws. Compliant with EN 60947-7-1.
A safer substation
The OZNN cover slips over the clamp – no more bird-caused short circuits.
From stock in Poland
Clamps and covers ship from our warehouse – separately or together with the transformer.
See also: Energeks transformer substations (product range, dimensions, drawings); a configuration with documents can be prepared in the station configurator (in Polish).
